DC Switchgear

Switchgear that uses direct current (DC), is an important component in electrical power distribution systems and control systems. It helps ensure reliable and efficient operation across a wide range of industries. Although alternating current (AC), has long been the dominant energy distribution method, DC switchgear is rapidly gaining in popularity because of its unique advantages and many uses.


Ensure the optimal performance of your equipment! call us at 276-285-3841

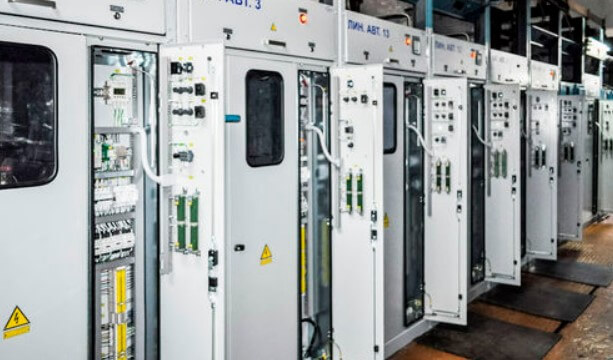

DC Switchgear



What Is DC Switchgear?

Switchgear for direct current (DC), also known as DC switchgear, is an electrical device that was created specifically to control, isolate, and protect DC power systems. This type of switchgear is used in many different applications such as train traction power, renewable energy systems and data centers.

Switchgear is necessary to ensure the safety and reliability of DC power systems. Common components include circuit breakers, disconnect switch, fuses and surge arresters. These components regulate DC power flow and protect the system against errors and overloads. They also isolate problematic areas.

DC switchgear is primarily used to control and protect the DC power system. This switchgear allows for manual or automatic circuit switching, isolation of defective areas, and protection of tools and people from dangers. Switchgear is designed to handle the special properties of DC power, including its higher voltage and lack of zero crossing points.

The type of switchgear that you use in DC systems depends on the application. Vacuum interrupters can be used in applications where cost-effectiveness is a priority. For situations in which safety and speed are important, oil circuit breakers may be the best option. Direct current switchgear has a promising future due to its increasing applications and technological advancements.



Ensure the optimal performance of your equipment! call us at 276-285-3841

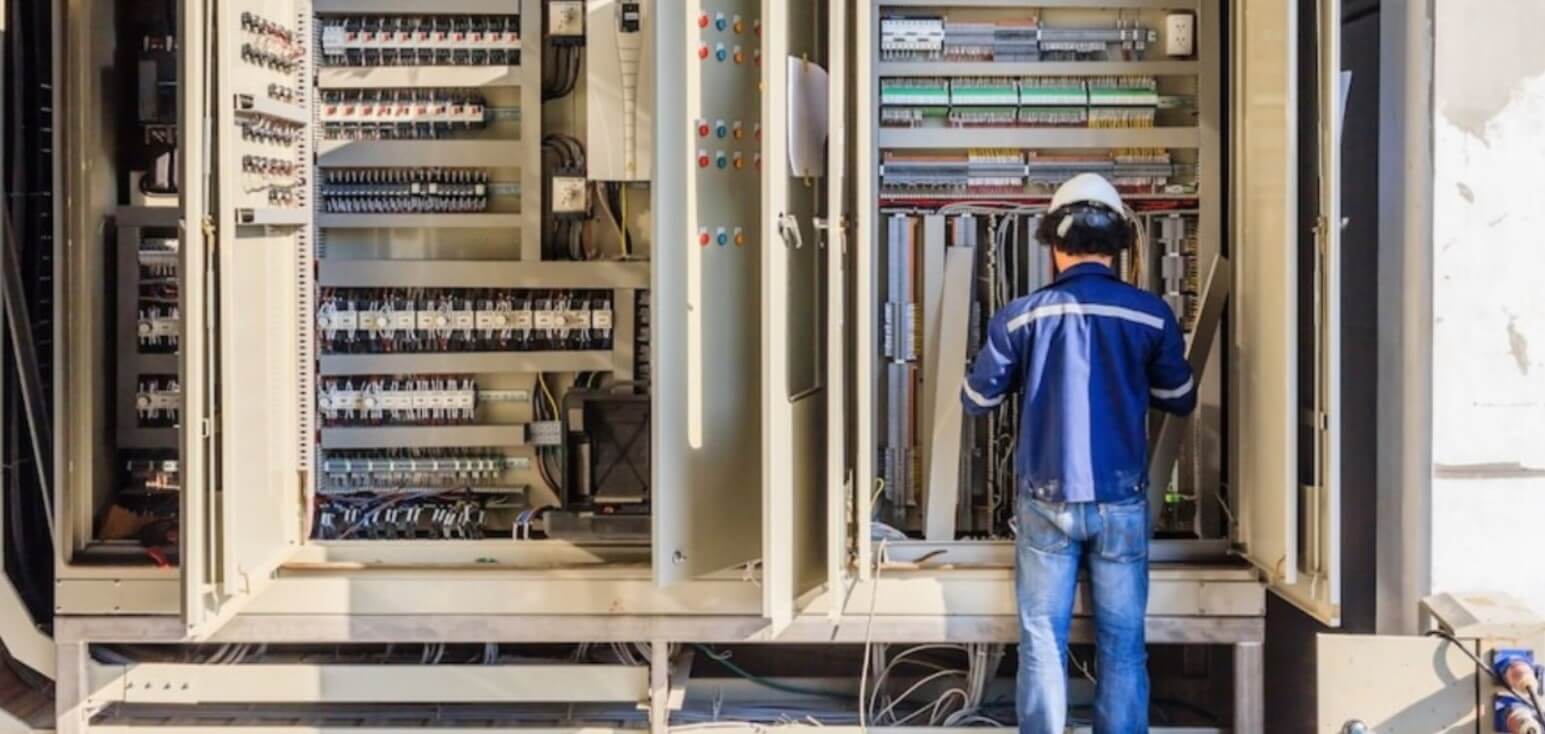

DC Switchgear


Understanding the advantages of DC Switchgear

DC switchgear has several advantages in addition to protecting DC power networks.

  • Increased dependability: By reducing failures and allowing for separation of maintenance, switchgear can improve the dependability of DC power systems.
  • Reduced Downtime: This switchgear reduces downtime by isolating faults immediately and restoring the power to the system.
  • Improved efficiency: Minimizing losses due to errors and arcing the switchgear, can help improve the efficiency of DC systems.
  • Safety increased: This switchgear increases safety by reducing arc-flashes and other hazards.

Applications for DC Switchgear

DC switchgear can be found in many different scenarios and industries, which highlight its benefits.

  • Integrating renewable energy: Wind and solar farms produce DC electricity that must be converted to AC and then included in the AC network. Direct current switchgear facilitates this conversion process, which results in an effective and seamless energy injection.
  • Data Centres: DC distribution power is used to improve energy efficiency and reduce transmission losses in data centers. DC switchgear is used to distribute power efficiently in these energy-intensive buildings.
  • Electric vehicles (EVs). DC Charging Facilities are Important due to the Growing Number of EVs. Switchgear allows for high-power charging, reducing charging times and promoting the use of electric cars.
  • Energy Storage Systems Battery energy storage systems use switchgear to charge and discharge batteries, reroute loads, and stabilize the grid.
  • HVDC transmission: Modern DC switches are essential for the safe and reliable operation of high-voltage DC transmission systems that are used to transfer electricity over long distances.
  • Industrial Application: Specialized DC Switchgear allows for precise control of DC power required for industrial operations such as electroplating and electrolysis.
