When it comes to electrical systems, especially those handling direct current (DC), safety is not just a priority—it’s a necessity. From industrial facilities and renewable energy plants to transportation networks and mining operations, electrical failures can have costly and sometimes dangerous consequences. One of the most effective safeguards for these systems is a DC overcurrent protection relay. These devices are designed to detect abnormal current levels and disconnect faulty circuits before damage spreads, protecting equipment, minimizing downtime, and most importantly, keeping people safe. At Swartz Engineering, our mission has always been to create solutions that blend reliability with innovation. In this blog, we’ll explore the best options for DC overcurrent protection, why these relays are essential, and how to select the right one for your application.
Why DC Overcurrent Protection Matters
Overcurrent events in DC systems occur when excessive current flows through a circuit. This can be caused by short circuits, ground faults, or equipment malfunctions. Unlike AC systems, DC faults can be more dangerous because:
- Arc persistence – DC current does not naturally cross zero as AC does, which means arcs can sustain longer.
- Thermal buildup – Continuous DC current generates more heat, risking fire or equipment damage.
- Critical applications – Many DC systems power vital infrastructure like battery energy storage, solar arrays, or railway traction systems.
Without an effective DC Overcurrent Protection Relay, these risks can lead to catastrophic failure. Relays act as vigilant guardians, monitoring current and responding instantly when danger arises.
Features to Look for in a DC Overcurrent Protection Relay
Not all protection relays are built the same. Before we dive into the top options, it’s important to understand the features that define a reliable unit:
- Fast response time – The relay must detect and isolate faults quickly.
- Customizable settings – Adjustable pickup and time-delay settings allow engineers to tailor protection.
- High accuracy – Precision is key to avoiding nuisance trips while still catching true faults.
- Communication capabilities – Modern relays often integrate with SCADA or monitoring systems.
- Durability – DC applications often operate in harsh conditions, requiring robust build quality.
GET IN TOUCH
The ultimate solution for reliable power control! call us at 276-285-3841
Best Options for DC Overcurrent Protection Relays
Swartz Engineering DC Protection Relays
Swartz Engineering has long been recognized for producing dependable relays for industrial and utility use. Their DC Overcurrent Protection Relay options are designed with safety, customization, and longevity in mind. Some highlights include:
- High-speed tripping mechanisms for immediate fault clearing.
- Rugged design to handle vibration, heat, and outdoor environments.
- Flexible configuration options that allow precise current threshold settings.
- Long service life backed by engineering expertise trusted across industries.
These relays are particularly suited for renewable energy, rail systems, and heavy industrial applications where DC power is critical.
Safety Benefits of DC Overcurrent Protection Relays
Installing the right relay goes far beyond compliance with electrical codes. The real-world benefits include:
- Protecting lives – By preventing fires, electric shock hazards, and explosions.
- Reducing equipment damage – Overcurrent can destroy expensive machinery in seconds.
- Minimizing downtime – Fault isolation ensures the rest of the system keeps running.
- Optimizing performance – Accurate detection prevents unnecessary interruptions.
- Ensuring compliance – Relays help facilities meet safety and regulatory standards.
When viewed through this lens, investing in a high-quality DC Overcurrent Protection Relay is not just a smart engineering choice—it’s a business imperative.
Future Trends in DC Protection
As industries increasingly adopt DC power—driven by renewable energy storage, electric vehicles, and smart grids—the demand for advanced overcurrent protection continues to grow. The future of relays will likely include:
- AI-powered predictive analysis to anticipate faults before they happen.
- Smarter integration with IoT for real-time monitoring and remote control.
- Eco-friendly designs that minimize energy use while maximizing performance.
- Modular upgrades allow facilities to expand protection without full replacements.
Swartz Engineering is already innovating in this space, ensuring its relays evolve alongside modern energy demands.
GET IN TOUCH
The ultimate solution for reliable power control! call us at 276-285-3841
Conclusion
Choosing the best DC Overcurrent Protection Relay is a crucial step in safeguarding electrical systems, protecting valuable assets, and ensuring the safety of workers and communities. With a variety of strong options on the market, you have the tools to build a safer, more resilient power system.
At the end of the day, the best relay is the one that matches your system’s unique needs. By prioritizing reliability, accuracy, and adaptability, you not only comply with safety standards but also future-proof your operations. For decades, Swartz Engineering has been trusted to deliver innovative protection solutions that industries can rely on. With the right DC Overcurrent Protection Relay, you can confidently protect your system against the unexpected, ensuring safe and efficient operations well into the future.
Products We Offer
Swartz Engineering strives to provide top-quality products to achieve our customer's needs. Our products include:

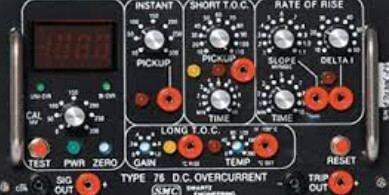

- Type 76 DC Relay

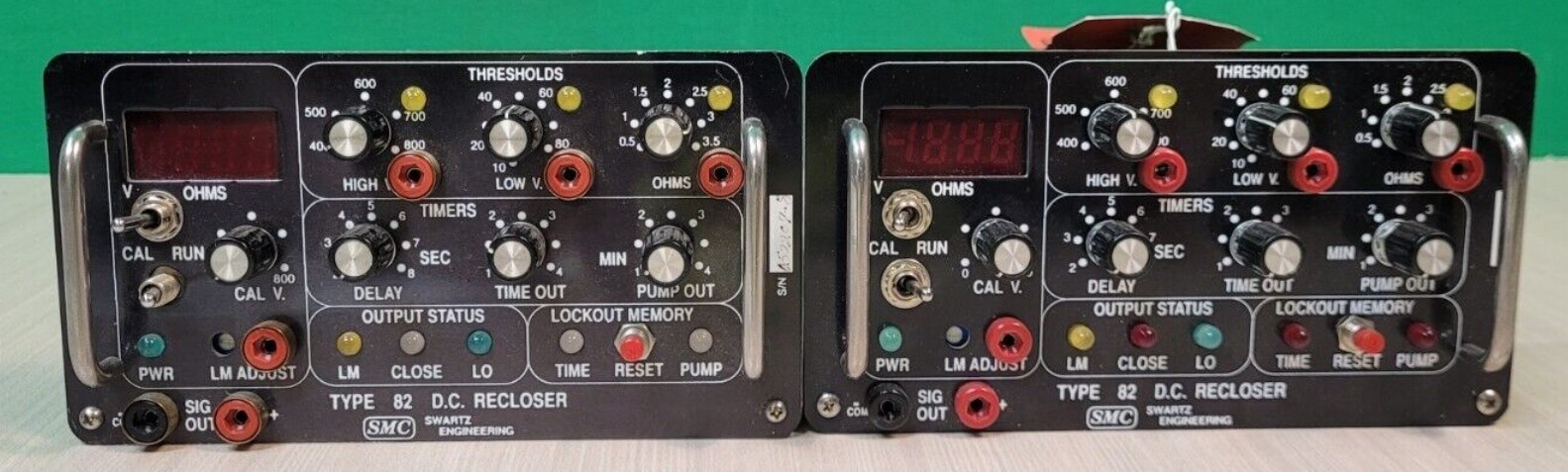

- Type 82 DC Relay
- Swartz Engineering’s Type 64 Ground Relay
- Type 32 Reverse Current Relay
- Type 150 DC
- CSM Shield Monitor
- Metal Oxide Surge Arrestors
- Transducers
- MVIS SL Slim-line Contactor
- Fully-tested Power Control Rooms
- Swartz Engineering’s Portable Substations
For nearly half a century, we have proudly led the industry in ensuring safety and efficiency. Swartz Engineering is a trusted family-owned company dedicated to providing top-notch power distribution solutions for the electrical industry. Contact us today.
