76 RelayThe type 76 Relay is a product that has a wide appeal across the transportation industry. As one of the main products associated with protective overcurrent devices, this is a device that is common in use for trolleys, trains and more. For example, one successful project lies deep under the ground beneath London, United Kingdom in the Tube. It is also found to be integrated with manufacturers systems such as: Powell Industries, Controlled Power, Siemens, Myer’s, Balfour Beaty, Microelectrica Scietifica, ABB, Alstom, Hitachi, Kawasaki, and Bombardier.

As this is a device that sees worldwide use across every major transportation system, We ensure that we can deliver reliability in every system that we create. The type 76 relay is particularly effective at delivering protection for third rails, trolley wires, feeder controls and more. The design includes remote overload conditions, severe overload conditions in immediate overload conditions. The overall nature of the device can prevent failures with relation to a wide range of rail technology.

As a required safety device, we wanted to ensure that this would be a product that could have an extremely rugged construction that was designed to prevent failures over time. This is a product that can stand up even during a severe overload with a dependable solution that can perform in adverse conditions.

It’s Main Features

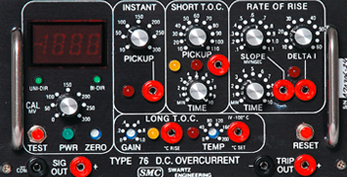

The relays construction is produced in a modular format for a variety of fits for remote use as well as interior mounting. A complete draw out construction for improvements to reliability.

Detector channels include rate of rise, long-term overcurrent, short term overcurrent as well as instant overcurrent charge protection.

An LED meter produces accurate and easy readouts for diagnostics.

The 76 relay can also be used in a wide range of internal power supply options. The auto compensation for DC inputs ensure maximum compatibility for the device. Onboard calibration controls introduce preset thresholds and delays that are introduced with every protective channel. Delays introduced Ensure verified accuracy with any shut off that occurs.

The device also works with positive and negative conductors within DC networks for field calibration solutions in a snap.

The type 76 format is insulated as a current monitor and this delivers negative and positive conductors in this format. The technology works as a standalone relay an essential piece of technology. It is highly compatible with other relays for added safety as well. With pairing to an automatic reclosing relay, this is a device that can add a number of safety features.

With a control panel that is calibrated in millivolts. This is a highly accurate relay that can be compatible with any shunt. The device interrupts faults to reclose and continue service as required when used in conjunction with other relays. The relay is designed to be set up within just a few minutes and deliver widely accurate results as well as protection. Every channel with this device comes with quick setup items to ensure that the setup on the device can be quick.

If you are interested in learning more about this relay as well as its compatibility with other devices in the transportation industry, contact us today. We can share more information on its compatibility with other devices as well as help you determine whether or not the type 76 DC overcurrent device may be an excellent fit for your own business.

As a premier provider in the transportation industry today, this is a product that is seeing use in almost every aspect of the heavy rail industry. We want to ensure that it remains one of the most reliable products on the market. By increasing the number of faults that it can protect against, improving the solid-state technology and offering more rugged construction options we can ensure that this is a product that offers the best level of low maintenance support for your business within the transportation industry.

Contact us today to learn more about our electrical components and relays. Our team is constantly working to test out new products and offer more to our clients.

We want to ensure we can offer improved performance that you can rely on globally and the finest tools for the needs of your business. Contact our staff today to learn more about these devices as well as our ongoing quality standards.
