What Do Ground Fault Relays Monitor?
A ground fault can be a hazardous event when not appropriately addressed. It occurs when there is accidental contact between an energized conductor and equipment or ground. This happens due to insulation breakdown, which can be caused by damp, wet, and dusty environments. When this happens, the return path of the fault current is through the grounding system and any personnel or equipment that may be part of the system. It is important to note that in order to prevent ground faults from occurring, extra diligence is necessary for design and maintenance, as water conducts electricity and increases the potential for such hazards.
What Is the Purpose of Grounding?
Ground fault relays are used in electrical circuits to detect and protect against the potential danger of ground faults. These devices use one of two methods to detect if the current is returning to its source on a different path: zero sequence, which looks at the phase conductors, or direct measurement, which looks at the current in the connection between the transformer neutral and ground. When a difference in current is detected that exceeds a predetermined amount for a given period, the ground fault relay will operate to prevent any dangerous conditions from occurring.
What Are Some Issues That Cause a Ground-Fault Relay to Trip Accidentally?
Ground-fault relays may trip unintentionally due to noise or harmonics in the circuit. This is becoming an increasingly common problem as more devices that produce high-frequency noise, such as variable frequency drives, inverters, and even LED lighting, are being used in electrical circuits. To prevent nuisance trips of the ground-fault relay, the quality selection is essential – opt for a high-quality device that can effectively filter out harmonic frequencies and other noise from its measurements.
Electrical faults can generally be classified into phase-to-phase and ground faults. Ground faults, which make up almost all of these types of faults, require additional protection relays to provide adequate safeguards since regular fuses can't protect against them.
Grounded systems are necessary for the proper operation of ground fault relays. Without a grounded system, the risk of transient overvoltage is increased due to the lack of an intermittent or arcing ground fault to dissipate this buildup of voltage. Additionally, finding the exact location of a ground fault in an ungrounded system can be difficult since current-based ground-fault relays do not allow for the flow of current on the first fault. With a grounded system, however, it is easier to locate faults using current-based ground-fault relays.
Contact our team today if you are interested in learning more about Ground Fault Relays and the safety mechanisms that can prevent accidental tripping.
Get in Touch With Us
If you're looking for a trusted and experienced partner to help you with your ground relay needs, look no further than Swartz Engineering.Whether you need a new ground relay system installed, an existing system upgraded or repaired, or ongoing maintenance and support, Swartz Engineering has you covered. Our goal is to help you achieve maximum uptime and efficiency while ensuring the safety and reliability of your electrical systems.Contact us today to learn more and get started!
Products We Offer
Swartz Engineering strives to provide top-quality products to achieve our customers needs. Our products include:
- Type 76 DC Relay
- Type 82 DC Relay

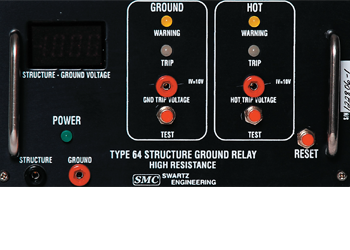

- Swartz Engineering’s Type 64 Ground Relay
