When it comes to modern railway systems, reliability is not just an advantage—it’s a necessity. Every train, every passenger, and every cargo shipment depends on a seamless power supply. That’s where the Railway Traction Substation plays a critical role. It’s the powerhouse behind the scenes, ensuring that electric trains run smoothly, efficiently, and safely across the rail network.
At Swartz Engineering, we specialize in developing and maintaining high-performance traction substations that deliver uninterrupted power and reliability for railway operations. Let’s dive deeper into how a well-designed Railway Traction Substation maximizes efficiency and reliability across the board.

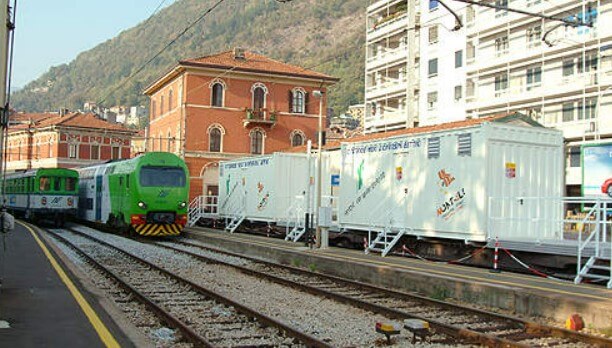

Understanding the Railway Traction Substation
A Railway Traction Substation is a specialized electrical system that converts high-voltage AC power from the main grid into a form suitable for railway traction systems—either DC or AC power, depending on the rail network design. These substations are strategically positioned along railway lines to ensure that trains receive a constant, stable flow of energy, even across long distances.
In simpler terms, think of the traction substation as the “heart” of the electric railway—it pumps the power needed to keep the system alive and moving. Without it, trains would stall, schedules would crumble, and overall railway efficiency would suffer.
GET IN TOUCH
The ultimate solution for reliable power control! call us at 276-285-3841
Core Functions of a Railway Traction Substation
Every Railway Traction Substation is designed with precision to perform several vital functions, including:
- Voltage Conversion: The substation steps down high-voltage electricity from the grid to the appropriate level for train operation—typically 25kV AC or 1.5/3kV DC systems.
- Power Rectification and Inversion: Depending on the network’s design, substations convert AC to DC or vice versa, ensuring trains get the correct form of electrical power.
- Power Distribution: The converted electricity is distributed along the railway through overhead lines or third rails to power multiple trains simultaneously.
- Protection and Monitoring: Substations are equipped with advanced protective relays, monitoring systems, and automation to detect and respond to overloads or faults in real-time.
Why Reliability Matters
In railway operations, even a few minutes of downtime can have massive ripple effects—delayed schedules, stranded passengers, disrupted cargo logistics, and financial losses. The Railway Traction Substation ensures that these problems are minimized through dependable energy delivery and intelligent fault management.
Reliable traction substations contribute to:
- Enhanced operational continuity: No unplanned halts due to power failures.
- Passenger safety: Stable voltage and current levels prevent hazardous surges.
- Reduced maintenance costs: Fewer system breakdowns lead to long-term savings.
- Energy efficiency: Advanced control systems optimize power use across the rail network.
Modern Innovations by Swartz Engineering
At Swartz Engineering, we’ve seen how technology transforms the performance and reliability of traction substations. Our latest Railway Traction Substation solutions integrate digital control systems, predictive analytics, and smart grid compatibility.
Here are a few innovations shaping the future of railway power systems:
- Digital Protection Relays: These devices monitor the electrical network in real time, automatically isolating faults before they cause major outages.
- SCADA Integration (Supervisory Control and Data Acquisition): Engineers can remotely control and monitor substation performance, ensuring quick responses to potential issues.
- Energy Storage Systems: Coupled with substations, these systems provide backup power during voltage drops or short outages—improving operational stability.
- Eco-Friendly Designs: New designs emphasize energy efficiency and sustainability by incorporating renewable power integration and reduced carbon footprints.
- Predictive Maintenance: AI-powered diagnostic systems predict when components may fail, enabling proactive maintenance instead of reactive repair.
These innovations align with Swartz Engineering’s mission: to build smarter, safer, and more sustainable railway power systems.
Benefits of a Reliable Railway Traction Substation
The advantages of investing in a dependable Railway Traction Substation extend far beyond simple power conversion. Here’s how it impacts the broader rail ecosystem:
- Improved Train Performance - Constant voltage ensures trains accelerate and brake efficiently, improving passenger comfort and reducing mechanical strain.
- Operational Cost Reduction - Reliable substations minimize power losses and prevent expensive downtime or emergency maintenance.
- System Safety Enhancement - Built-in protective mechanisms detect anomalies like short circuits, overheating, or overloads before they escalate into safety hazards.
- Network Expansion Flexibility - Scalable designs allow railway networks to expand without overhauling the entire substation infrastructure.
- Environmental Sustainability - Efficient substations contribute to the overall decarbonization of transport systems by supporting electrified railways.
Challenges and Solutions in Substation Reliability
Even the best Railway Traction Substation faces challenges—such as harsh weather, electrical faults, and aging infrastructure. However, with Swartz Engineering’s expertise, these obstacles can be addressed through modern engineering solutions.
- Aging Infrastructure: Upgrading with digital components extends lifespan and improves reliability.
- Environmental Stress: Weather-resistant enclosures and materials protect sensitive equipment.
- Load Management Issues: Smart transformers and load balancers ensure steady performance during peak hours.
- Safety Risks: Automated trip protection and insulation systems guard against electrical hazards.
Each of these solutions ensures railway operators can trust their systems to perform under any condition.
GET IN TOUCH
The ultimate solution for reliable power control! call us at 276-285-3841
Swartz Engineering: A Legacy of Dependability
For over a century, Swartz Engineering has been synonymous with power, reliability and innovation. Our expertise in Railway Traction Substation design and development has supported countless transportation networks worldwide. By combining traditional engineering excellence with modern digital solutions, we help rail operators maintain power continuity and passenger trust.
We understand that in rail transport, time is everything—and reliability is the key to keeping it. With Swartz Engineering’s traction substations, you’re not just investing in infrastructure—you’re investing in the confidence that every train will arrive on schedule.
Conclusion
In the dynamic world of modern rail transport, reliability defines success. A high-quality Railway Traction Substation from Swartz Engineering isn’t just an electrical asset—it’s a cornerstone of smooth operations, passenger trust, and long-term sustainability. By embracing innovation and precision engineering, Swartz Engineering continues to empower railway systems with the dependable energy they need to move the world forward.
Key Takeaways
- A Railway Traction Substation converts and distributes power efficiently for railway systems.
- Reliability ensures uninterrupted service, safety, and reduced operational costs.
- Modern substations feature digital controls, predictive maintenance, and eco-friendly designs.
- Swartz Engineering leads the way in creating high-performance, future-ready railway substations.
- Investing in substation reliability enhances performance, safety, and sustainability across the railway network.
Frequently Asked Questions
1. What is a Railway Traction Substation used for?
A Railway Traction Substation converts high-voltage power from the main grid into usable electricity for train systems, ensuring a consistent power supply for railway operations.
2. How does Swartz Engineering improve substation reliability?
Swartz Engineering incorporates digital protection systems, smart monitoring, and predictive maintenance technology to enhance reliability, safety, and performance.
3. What type of power do railway traction substations provide?
Depending on the railway system, substations can supply either alternating current (AC) or direct current (DC) power to meet the operational needs of electric trains.
4. Why is substation reliability crucial for railways?
Reliable substations minimize downtime, enhance safety, and support efficient train scheduling, ensuring passengers and cargo reach their destinations without delays.
