The Features of a CSM Shield MonitorThe CSM of monitoring integrity on shielded DC feeder cables. With any type of heavy electrical current is very important that regular monitoring is taking place and that systems are being protected from harm. Electrical current can quickly lead to extremely dangerous events in the workplace and damage to a massive amount of equipment that could cost expensive downtime. These types of monitoring units allow for the best possible use of insulation and current monitoring throughout your business. Monitoring support can check for the ongoing power conduction as well as the overall structure of your lines. The shield monitor in a combination with monitoring feeder cables and continuous shield monitoring will make the need for ongoing inspections or expensive materials or monitoring an expense that your business will not have to worry about in the future.

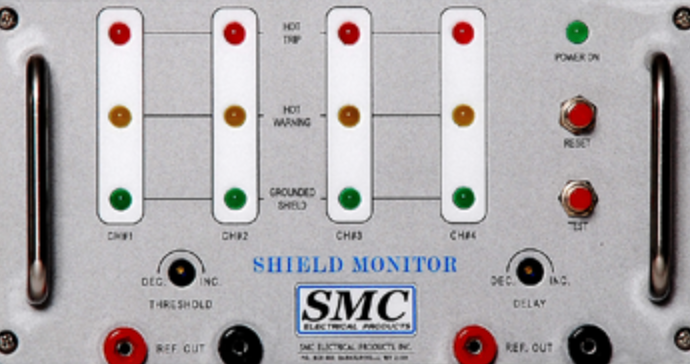

There are two main types of faults in the system including the CSM shield monitors which can detect hot shields and grounded people. Shield to acquire potential along the negative rail that exceeds the safe margin can be detected immediately and when that unit approaches a predetermined limit the monitoring device will provide a yellow LED limit that indicates a warning of impending problems. These types of monitoring devices can protect workers as well as provide the fastest possible response for a potential emergency. Red LEDs will eliminate to initiate trip output and it indicates that the insulation is far beyond compromised but actually unsafe. The relay will stay in a trip state until the reset is initiated when it reaches the red output.

The main type of fault warning protect against breakdowns in the insulation structure between the ground and the shield. The LED will eliminate in agreeing to ensure that annunciation of the output has occurred and the panel is operating at full efficiency. The contact lights and the annunciation lights are not latching conditions when they will not return to off or on. The green power-on LED light indicates that conditions are normal and the system is powered up and ready to continue working. The relay will indicate when it is powered up and monitored and the panel switches and LEDs will provide consistent calibration for your whole system. Swartz engineering includes features from the panel mounting system to the reset which and the be along the cover plate. The features of this device are that it includes a diagnostic port and easy installation. The ground leakage your warning along the MC output included sensitivity delay adjustment of 30 seconds up to five hours and the art strip along shield inputs provides continuous monitoring for your electrical equipment.

Two annunciate outputs are held closed in a channel format with trip contacts. The device can be calibrated to run quickly and comes from the factory ready to operate throughout your organization. If you are looking for a robust, modern, and current design for a CSM shield monitor, the tools we have in place for your business from this device will keep you and your equipment safe.
